GCP2000

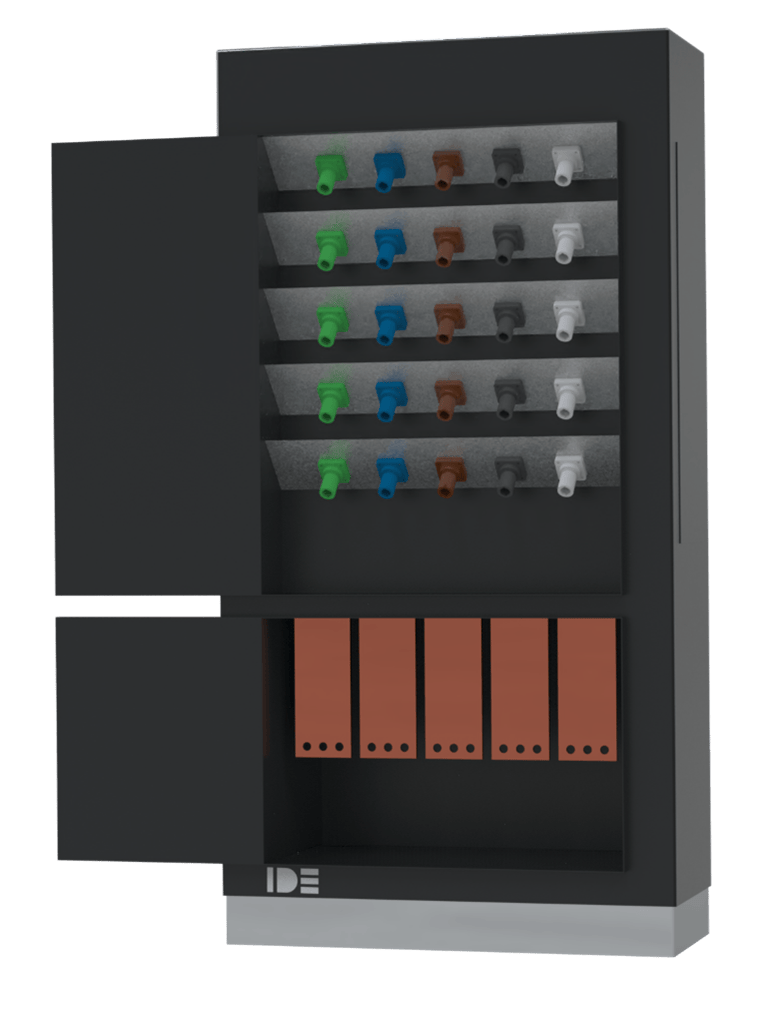

Our 2000A Generator Connection Point can be fitted inside or outside of a building, allowing a safe and quick connection of a back-up generator to your facility’s electrical system when required. Equipment housed within a floor standing steel enclosure. Powerlock type (Drain) connections to 100x10mm copper bars with 300mm spreading distance for bottom entry outgoing cables.

Technical Information

Inlet: 5 x 500A 3P+N+E Powerlock Type (Drain) Protection: N/A IP: 54

Outgoing: Fully rated copper capable to suit 5 x M12 connections Protection: N/A IP: N/A

Size (mm): H1835 x W950 X D400

Weight (kg): 150kg

Features and Benefits:

> Powerlock type (Drain) connections for a quick easy connection

> Powder coated Stainless Steel enclosure

> Slim Design

> Floor standing steel enclosure fitted with M10 fixing points

Popular Applications

The Generator Connection Box is designed to allow easy connection of a generator to restore power to critical applications such as hospitals, schools, airports, banks, and other commercial facilities. This removes the need for an electrician to make the connection.
