DS2

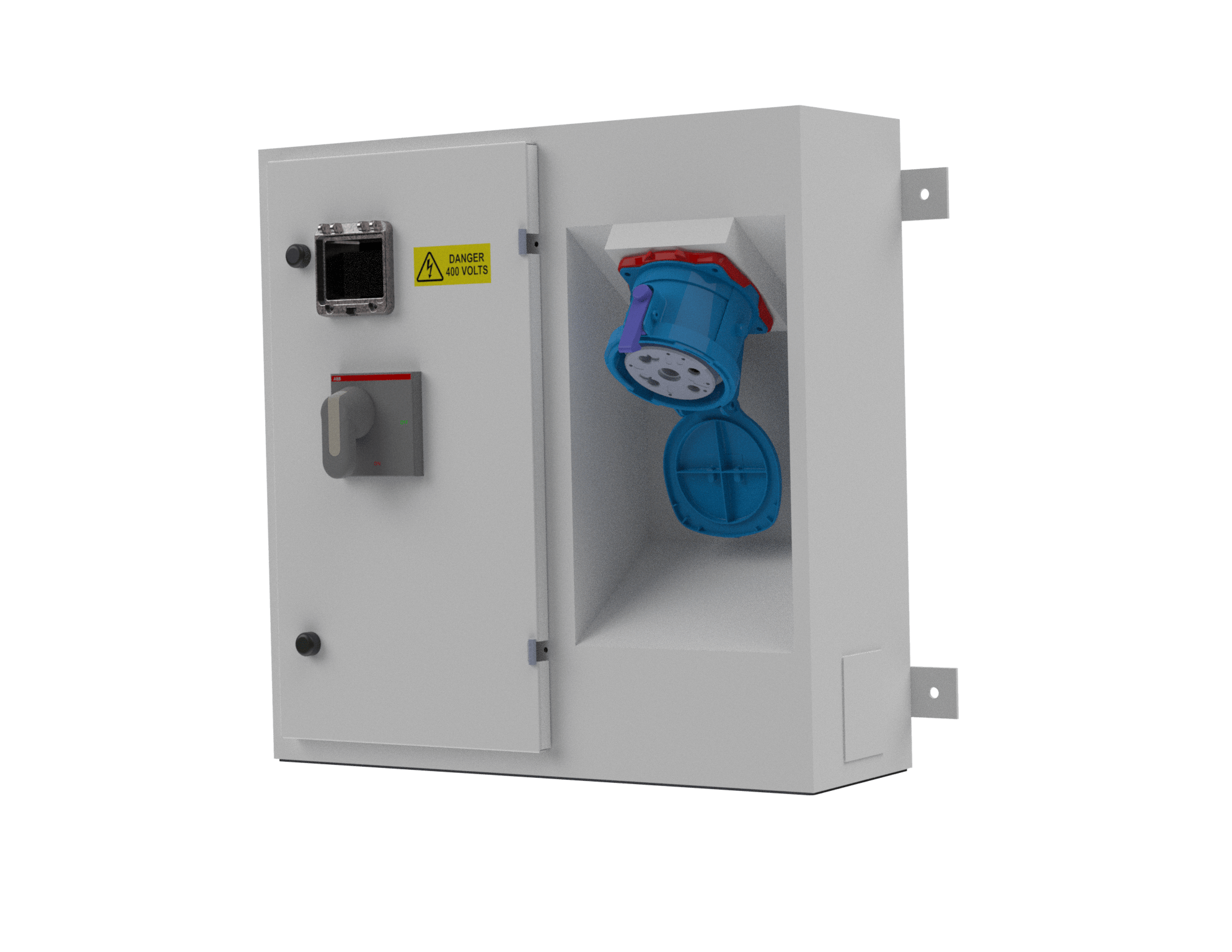

250A Three-phase mains distribution unit designed to supply Mobile MRI, CT and PET scanners. Equipment housed within a wall mounted steel enclosure. (Free standing galvanised steel crash frame optional). Incoming hardwire connection to M10 terminals with 250mm spreading distance. 250A 3P+N+E 400V IP55 Marechal outgoing socket protected by a door interlocked MCCB and adjustable earth leakage. Door interlocking handle with padlock facility. 2 No. CAT 5e IP67 data sockets and a 2 wire IP54 Telephone connection point, for use by others as required.

Technical Information

  • Incomer: 3P + N + E (Hardwire) . Protection: 250A 4 Pole MCCB Adjustable Earth Leakage
  • Outgoing: 250A 400V 5 Pin IP55 Socket. Protection: N/A
  • Dimensions: H650 x W650 x D200 (mm)
  • Weight – 32kg

Enclosure
Grey (RAL7035) textured powder coated stainless steel construction (1.4003 grade). 316 option available.
Separate incoming compartment with external panel key lock door and padlock hasp. Aluminium gland plate. Assembled to IP54.

All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.
