Temporary Power

Understanding your temporary power distribution needs

IDE has over 25 years' experience in designing power distribution solutions. With direct access to our skilled engineers, we can help you understand and specify solutions for any event.

Optimising your temporary power distribution network

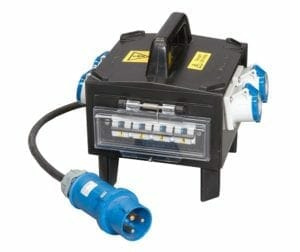

IDE supplies a full range of temporary power distribution panels from 4000A generator connections to small dual 16A sockets, and all connecting cable to ensure you optimise your temporary power network. We fit the product to the application.

Quality and safety assured

Every time any of our products leave our rental depot or manufacturing base, we test operation and safety. This includes EVERY socket, EVERY breaker, EVERY cable connection to ensure the highest reliability.

Long-term partnership

We can help you plan ahead, ensuring you get the best from your temporary power distribution set-up and our expert services. We can also manage your complete distribution fleet, or provide one stop rental management.

High Power Distribution

Often used to support long-term projects, our high-power distribution boards are designed to supply temporary power to a wide range of applications. All solutions are manufactured from stainless steel and are easily relocatable across site. Like all of our products, our high-power distribution boards can be engineered to suit the requirements of your project.

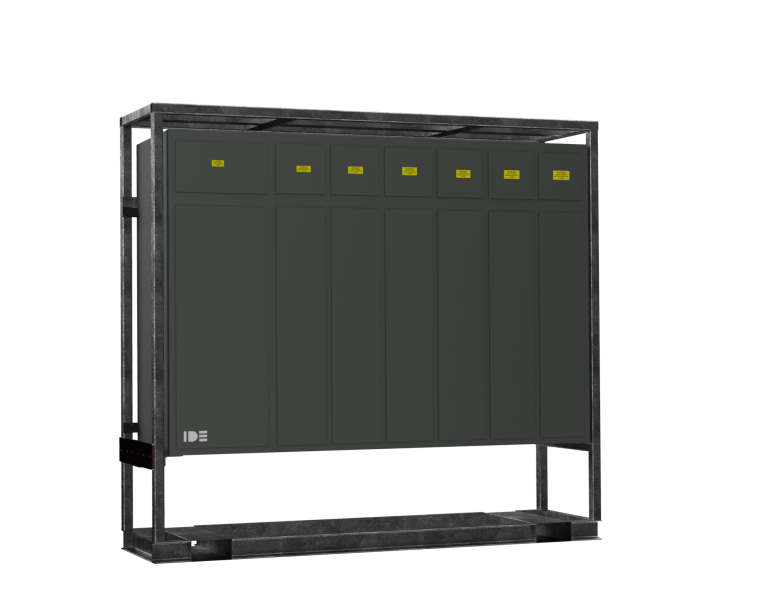

  • MD2000

    A Partially Type Tested Three-phase mains distribution unit for use on any temporary electrical installation. Equipment…

    A Partially Type Tested Three-phase mains distribution unit for use on any temporary electrical installation. Equipment housed in a steel enclosure with rated common HDHC copper busbar system.

    Entire panel is fixed within a load tested 3mm galvanised mild steel crash frame with crane lifting points and integral 200mm x 115mm fork lift pockets. The frame allows bottom entry of 240mm² HO7 cables and exit of 240mm² HO7 cables, through a brush gland plate, allowing a minimum bend radius of 400mm. Internal and external copper earth bars complete with brass studs with panel clearance to allow lug on within each incoming and outgoing section. Each outgoing section is fitted with its own Multi-Function power monitor, earth leakage protection, and compartment anti-condensation heaters.

    Enclosure
    Manufactured from rigid 3mm Zintec steel with phosphate primed welds, texture powder coated to RAL 9005 (Black). Front access doors manufactured from rigid 2mm Zintec steel, fitted with door locks and door stays (Lock out at 135°). Enclosure achieves IP65 rating. Other features include integral 2mm powder coated mild steel shrouds for additional safety, compliance with Form 4 Type 3 separation, and aluminium gland plates.

    Specification:
    Input: 2000A 3P+N Copper Stubs 2000A 4 Pole (50kA) ACB
    Outgoing: 6 No. 400A 3P+N Copper Stubs
    Outgoing: 6 No. 400A 4 Pole (50kA) MCCB’s c/w programmable & switchable earth leakage. (All MCB’s have C-Type trip curves. All RCD’s and RCBO’s are Type A)
    Dimensions: H 2100mm x W 2220mm x D 850mm
    Weight: 920kgs

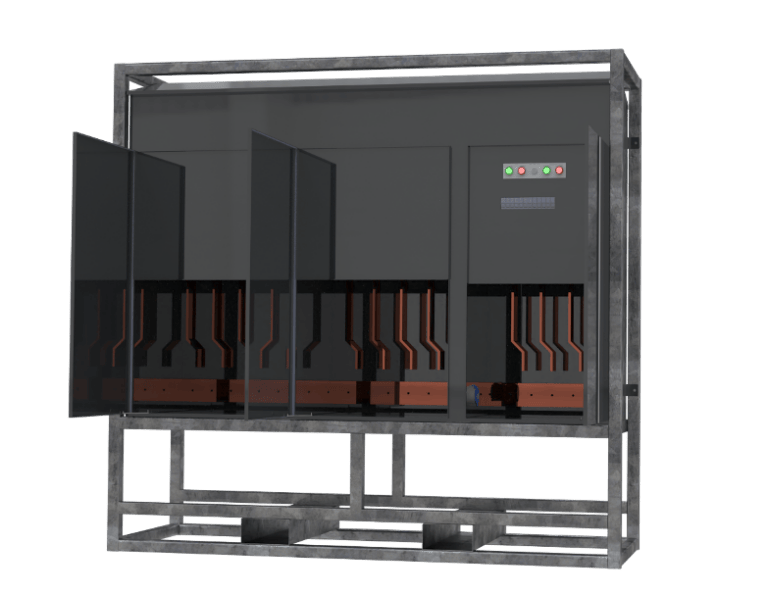

  • IP4000

    4000A 4 Pole ACB LSI supplying a common rated HDHC copper bus-bar system and load connection pads. All equipment housed…

    4000A 4 Pole ACB LSI supplying a common rated HDHC copper bus-bar system and load connection pads. All equipment housed in a steel enclosure with internal and external copper earth bar. Complete unit mounted within a galvanised steel crash frame with forklift pockets and lifting eyes.

    Enclosure
    Black (RAL9005) textured powder coated stainless steel 1.4003. Separate incoming and outgoing with internal protection shrouds and external panel key lock doors. Bottom aluminium gland plates. Assembled to IP55.

    Input: 3P + N + E Hardwire 4000a 4 pole ACB
    Outgoing: 3P + N + E Hardwire
    Dimensions: H 2320mm x W 1200mm x D 1300mm
    Weight: 700kgs aprox

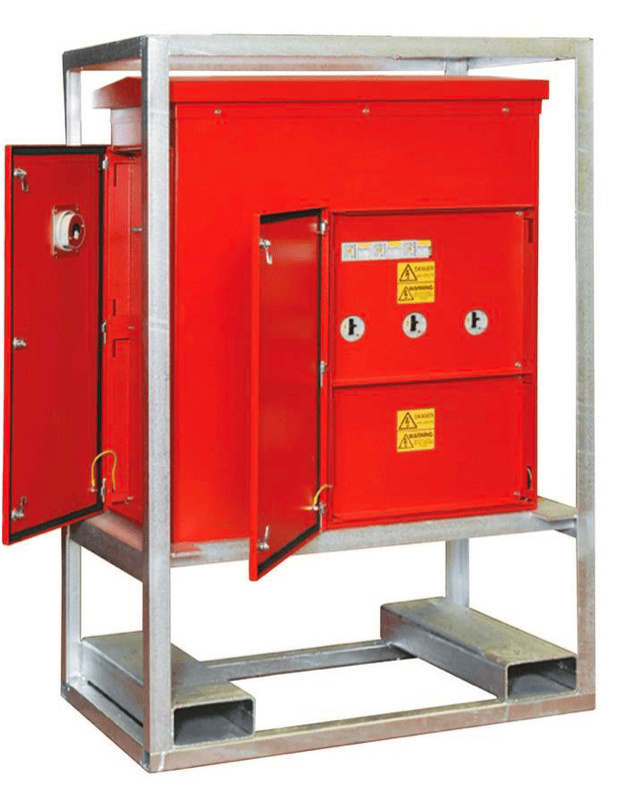

  • MD630

    Three-phase mains distribution board for use on any temporary electrical installation.  Equipment housed in a steel…

    630A Mains Distribution

    Three-phase mains distribution board for use on any temporary electrical installation.  Equipment housed in a steel enclosure with rated common HDHC copper busbar system. Complete unit mounted within a 3mm galvanised steel crash frame, with forklift pockets and lifting eyes. Incoming  and outgoing hardwire connection to terminals (Outgoing socket options available). Common internal and external copper earth bar with brass studs. External door interlocked incoming protection isolator handle.

    The enclosure is manufactured from a black textured powder coated Zintec steel construction with phosphate welds. Separate incoming and outgoing compartments, each with internal protection shroud and external panel key lock door. Removable rain hood for common busbar access. Aluminium gland plate. Assembled to IP65.

    • Input: 630A 3P + N Copper Stubs . Protection: 630A 4 Pole (36kA) MCCB
    • Outgoing: 6 No. 125A 3P + N  terminals . Protection: 125A 4 Pole (16kA) MCCB Adjustable Earth Leakage
    • Dimensions: H1550 x W1300 x D500 (mm)
    • Weight – 265kg

    All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.

  • IP1600

    1600A 4 Pole ACB LSI supplying a common rated HDHC copper bus-bar system and load connection pads. All equipment housed…

    1600A Inline Protection Panel

    1600A 4 Pole ACB LSI supplying a common rated HDHC copper bus-bar system and load connection pads. All equipment housed in a steel enclosure with internal and external copper earth bar. Complete unit mounted within a galvanised steel crash frame with forklift pockets and lifting eyes. Fitted with Emergency stop shunt operated c/w Indication lamps.

    Enclosure

    Black (RAL9005) textured powder coated stainless steel 1.4003. Separate incoming and outgoing with internal protection shrouds and external panel key lock doors. Bottom aluminium gland plates. Assembled to IP55.

    Specification

    • Input: 3P + N + E (Hardwire) . Protection: 1600A 4 Pole ACB
    • Outgoing: 3P + N + E (Hardwire) . Protection: N/A
    • Dimensions: H2320 x W960 x D900 (mm)
    • Weight – 1000kg

    All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.

    This 1600A Inline Protection Unit  is available to purchase or hire. For more information, please contact sales@idesystems.co.uk.

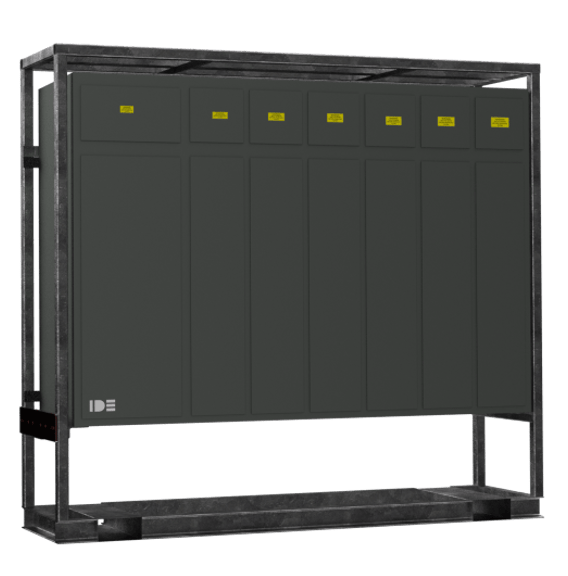

  • MD1000

    A 1000A Three-phase temporary mains distribution unit for use on any temporary electrical installation.  Equipment…

    1000A Power Distribution Board

    A 1000A Three-phase temporary mains distribution unit for use on any temporary electrical installation.  Equipment housed in a steel enclosure with rated common HDHC copper busbar system. Entire panel is fixed within a load tested 3mm galvanised mild steel crash frame with crane lifting points and integral 200mm x 115mm fork lift pockets. The frame allows bottom entry of 240mm²  HO7 cables and exit of 240mm² HO7 cables, through a brush gland plate, allowing a minimum bend radius of 400mm. Internal and external copper earth bars complete with brass studs with panel clearance to allow lug on within each incoming and outgoing section. Each outgoing section is fitted with its own Multi-Function power monitor, earth leakage protection, and compartment anti-condensation heaters.

    Enclosure

    Fabricated from 1.4003 stainless steel with a textured powder coat finish to RAL 7021 (dark grey).

    Front access doors manufactured from rigid 2mm Zintec steel, fitted with door locks and door stays (Lock out at 135°). Enclosure achieves IP65 rating.  Other features include integral 2mm powder coated mild steel shrouds for additional safety, compliance with Form 4 Type 3 separation, and aluminium gland plates.

    • Input: 1000A 3P+N Copper Stubs. Protection: 1000A 4 Pole (50kA) ACB
    • Outgoing: 3 No. 400A 3P+N Copper Stubs. 400. Protection: 3 No. 400A 4 Pole (50kA) MCCB’s c/w programmable & switchable earth leakage
    • Dimensions: H2100 x W1450 x D850 (mm)
    • Weight – 625kg

    All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.

    This 1000A temporary power distribution board is available to purchase or hire. For more information, please contact sales@idesystems.co.uk.
