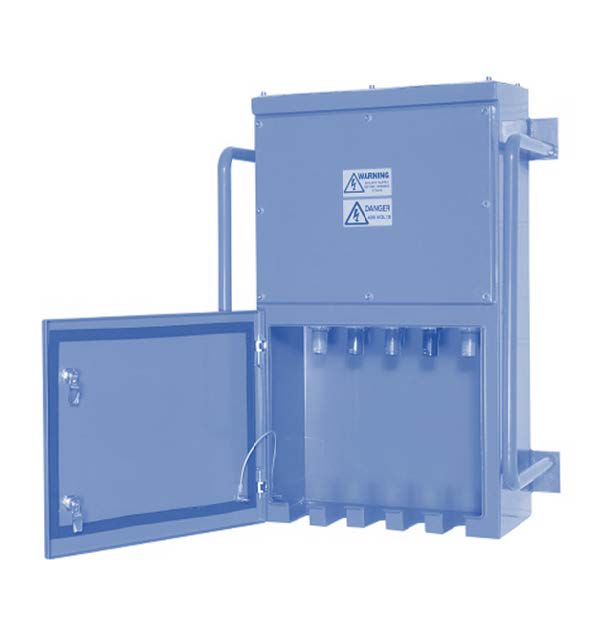

GCP630(Lock off connections)
630A three-phase, neutral and earth Generator Hookup Point designed to restore power to critical applications.
Technical Information
The Generator Hookup Point can be fitted inside or outside of a building, allowing a safe and quick connection of a back-up generator to your facility’s electrical system when required. The equipment is housed within a wall mounted steel enclosure. Powerlock (Drain) connections to copper bars allow for top entry outgoing cables. 3mm aluminium top and bottom gland plates are provided for the customer. Powerlock (Source) cables can be supplied by IDE at an additional cost. Once connections have been made, the powerlocks can then be locked off to avoid further interference.
Enclosure
Assorted colours available in textured powder coated stainless steel construction (1.4003 grade). Other colour options maybe available by request. Powerlocks mounted on a 45 degree angle aluminum plate. 3mm aluminium top and bottom gland plates are provided. Assembled to IP54. Other enclosures - such as mild steel can be supplied upon request.
Incomer: 3P + N + E Powerlock Drain . Protection: N/A
Outgoing: 3 x 10 copper bars c/w M12 clearance holes. Protection: N/A
Dimensions: H750 x W500 x D250 (mm)
Weight – 35kg
This product is available as a standalone solution, or can be installed by our team of engineers once they have conducted a site survey of your premises.
All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.
