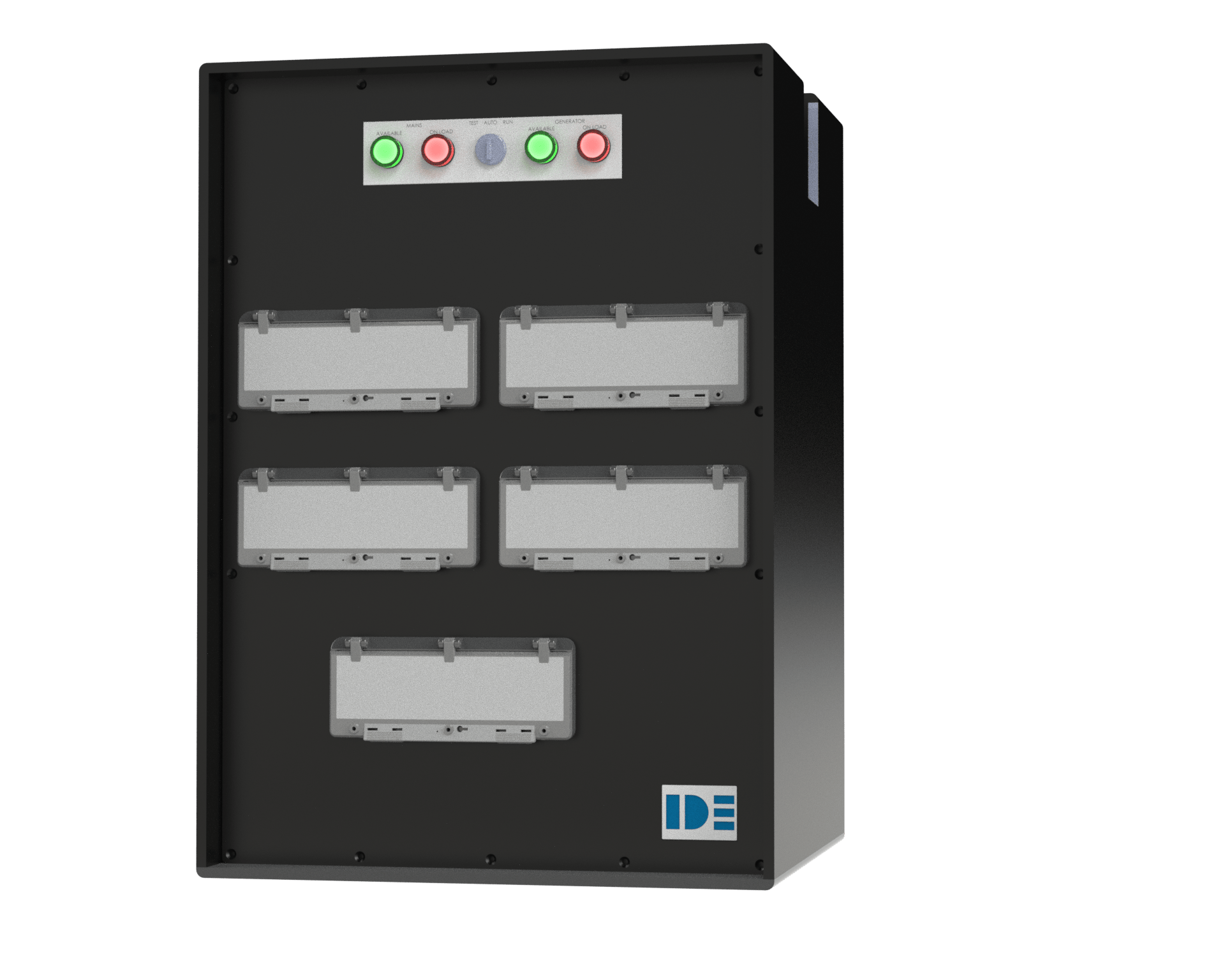

MD32 AMF COMBI UNIT – IDESIGN RANGE

Introducing the latest in product innovation. Key Features: >  Fully automatic plug in transfer switch >  IEC 60947-6-1 tested and fulfils the requirements of Part 6-1. >  2 In 1 Compact design >  Lockable manual transition mode >  Large legible lamp mode indicators > Reliable motorized switch

Technical Information

Specifications

> Input 1 (Mains/Duty): 125A 400V 5 pin IP67 inlet.Main Protection: 125A 4 pole MCCB

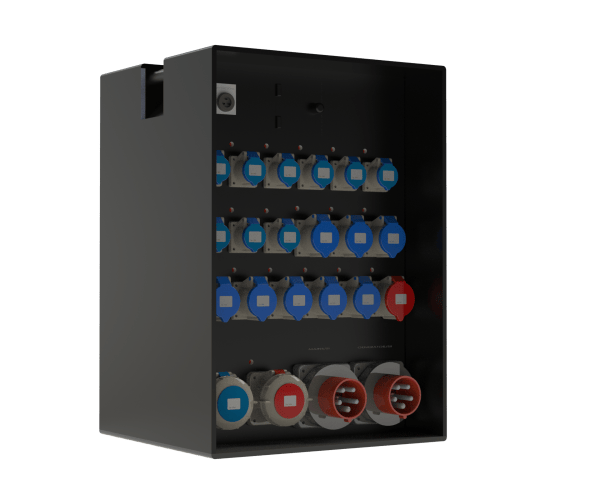

> 1 X 63A 230V 3 Pole IP67 Panel-Socket 1 X 32A 400V 5 Pole IP44 Panel-Socket 1 X 63A 400V 5 Pole IP67 Panel-Socket 11 X 32A 230V 3 Pole Panel-Sockets, 7 X 16A 230V 3 Pole Panel-Sockets

> Outgoing Protection: 63A 4 pole MCCB, 63A 2 Pole Type C MCB, C32 4 Pole RCBO, C32 2 Pole RCBO, C16 2 Pole RCBO (RCBOs 30mA)

> Switching method: Motorized open transition > Aux: 16A 230V 3 Pin IP44 socket.

> Protection: 16A 2 Pole 30mA RCBO
