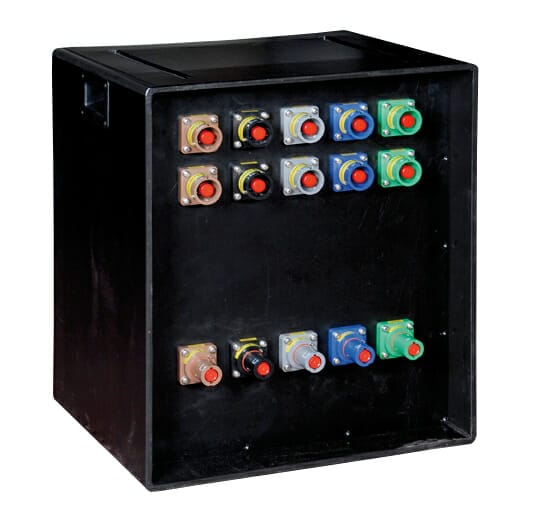

IP630S

Three-phase inline supply/equipment protection and splitter unit for use on any temporary electrical installation.

Technical Information

Equipment housed in a polyethylene enclosure, with recessed Socket and Switchgear panels for mechanical protection. Enclosure incorporates integrated lifting handles and rails for ease of handling and stacking. External brass earth stud.

10mm thick 300-Grade High Density Polyethylene, offering good impact resistance, chemical resistance and high rigidity. Density of 0.96 g/cm³, less than 0.01% moisture absorption, impact strength of 10 kJ/m², service temperature from -50 to +80°C, with greater than 1014Ω surface resistance. IP54 Rated.

Specification:

  • Incomer: 630A 400V 3P+N+E Powerlock drain connectors.
  • Outgoing: 2 x 630A 400V Powerlock source connectors.
  • Protection: 630A 4 pole MCCB
  • Dimensions: H450 x W550 x D495 (mm)
  • Weight: - 40kgs

All temporary power distribution boxes are manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification) and the products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.
