AMF1600S-1

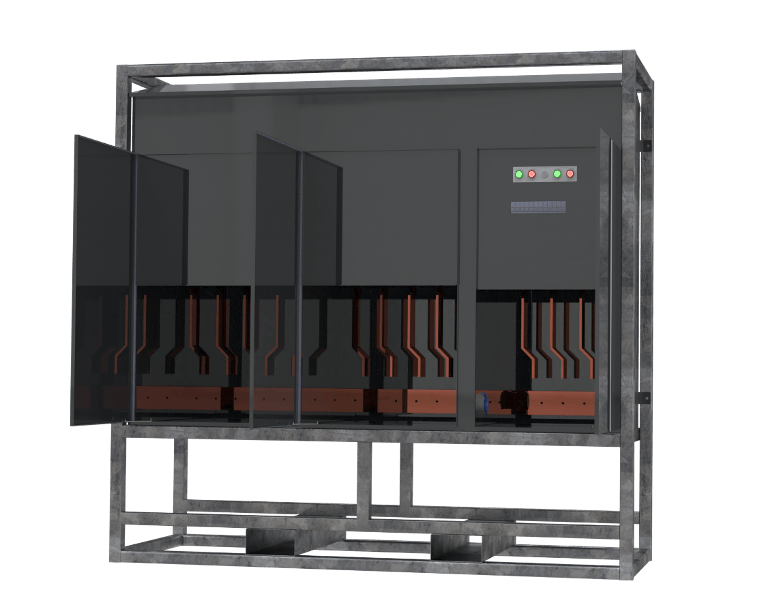

1600A Three-phase auto mains fail (AMF) changeover panel allows automatic connection of a secondary electrical supply to a load upon failure of the primary. Mechanically and electronically interlocked 4 Pole ACB’s supplying a common rated HDHC copper busbar system and load connection pads. No volt connection for remote Generator start (N/O & N/C).

Technical Information

Auxiliary power supply for Generator battery charging/jacket water heater. 3 Position key switch for Auto, Test and Generator run. Supply availability neon’s for visual representation of status. Incoming supply adjustable undervolt and time delay relays for setting of individual supply parameters. All equipment housed in a steel enclosure with internal and external brass earth bar. Complete unit mounted within a galvanised steel crash frame with forklift pockets and lifting eyes.

Enclosure

Black (RAL7035) textured powder coated Zintec steel construction with phosphate welds. Separate incoming and outgoing (with control gear) compartments with internal protection shrouds and external panel key lock doors. Aluminium gland plate. Assembled to IP55.

Specification

  • Input 1 (Mains): 3P + N + E (Hardwire) . Protection: 1600A 4 Pole ACB
  • Input 2 (Generator): 3P + N + E (Hardwire) . Protection: 1600A 4 Pole ACB
  • Outgoing Load: 3P + N + E (Hardwire) . Protection: N/A
  • Aux: 32A 400V 3P+N+E socket. Protection: 32A 4 Pole 30mA RCBO
  • Dimensions: H2100 x W1430 x D650 (mm)
  • Weight – 750kg

All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.
