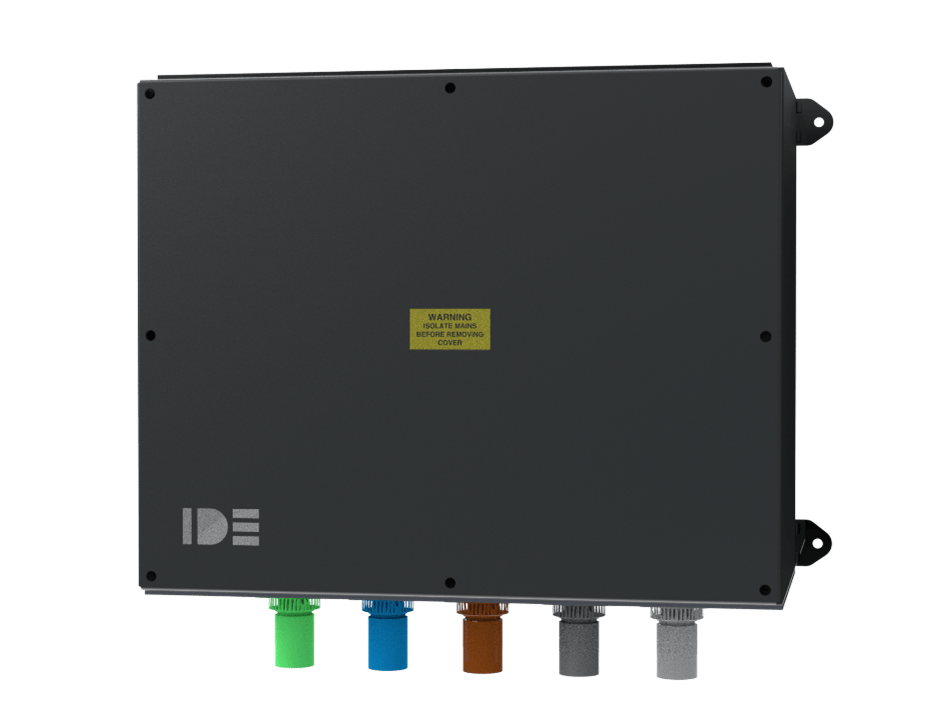

GCP 400-630
Our Generator Connection Points can be fitted inside or outside of a building, allowing a safe and quick connection of a back-up generator to your facility’s electrical system when required.
Technical Information
- Incomer: 1 x 500A/800A 3P+N+E Powerlock type (Drain) Protection: N/A IP: 54
- Outgoing: Fully rated copper, capable to suit 1 x M12 connections. Protection: N/A
- Dimensions: H400 x W538 x D265 (mm)
- Weight: 24kg
Operation
We recommend that the generator should be connected/disconnected when off load and not running. No voltage should be present at the power locks. We recommend following the convention of connecting in the following order: Earth - Neutral - L1 - L2 - L3, then disconnecting in reverse order.
Features and Benefits:
> Indoor & Outdoor Use
> Powerlock type (Drain) connections for a quick easy connection
> Powder coated Stainless Steel enclosure
> Wall mounted fitted with M8 fixing points
Popular Applications
The Generator Connection Box is designed to allow easy connection of a generator to restore power to critical applications such as hospitals, schools, airports, banks, and other commercial facilities. This removes the need for an electrician to make the connection.
All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.
