IP1600

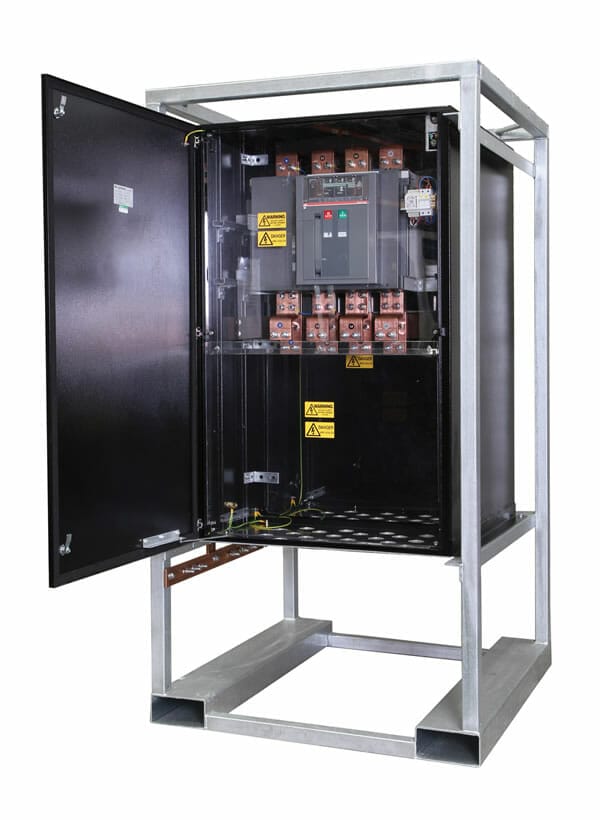

1600A 4 Pole ACB LSI supplying a common rated HDHC copper bus-bar system and load connection pads.

Technical Information

All equipment housed in a steel enclosure with internal and external copper earth bar. Complete unit mounted within a galvanised steel crash frame with forklift pockets and lifting eyes. Fitted with Emergency stop shunt operated c/w Indication lamps.

Enclosure

Black (RAL9005) textured powder coated stainless steel 1.4003. Separate incoming and outgoing with internal protection shrouds and external panel key lock doors. Bottom aluminium gland plates. Assembled to IP55.

Specification

  • Input: 3P + N + E (Hardwire) . Protection: 1600A 4 Pole ACB
  • Outgoing: 3P + N + E (Hardwire) . Protection: N/A
  • Dimensions: H2320 x W960 x D900 (mm)
  • Weight – 1000kg

All temporary power distribution equipment is manufactured by IDE in the UK and tested to BS 7671 (12 Months Certification). The products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.
