LBC800-1000

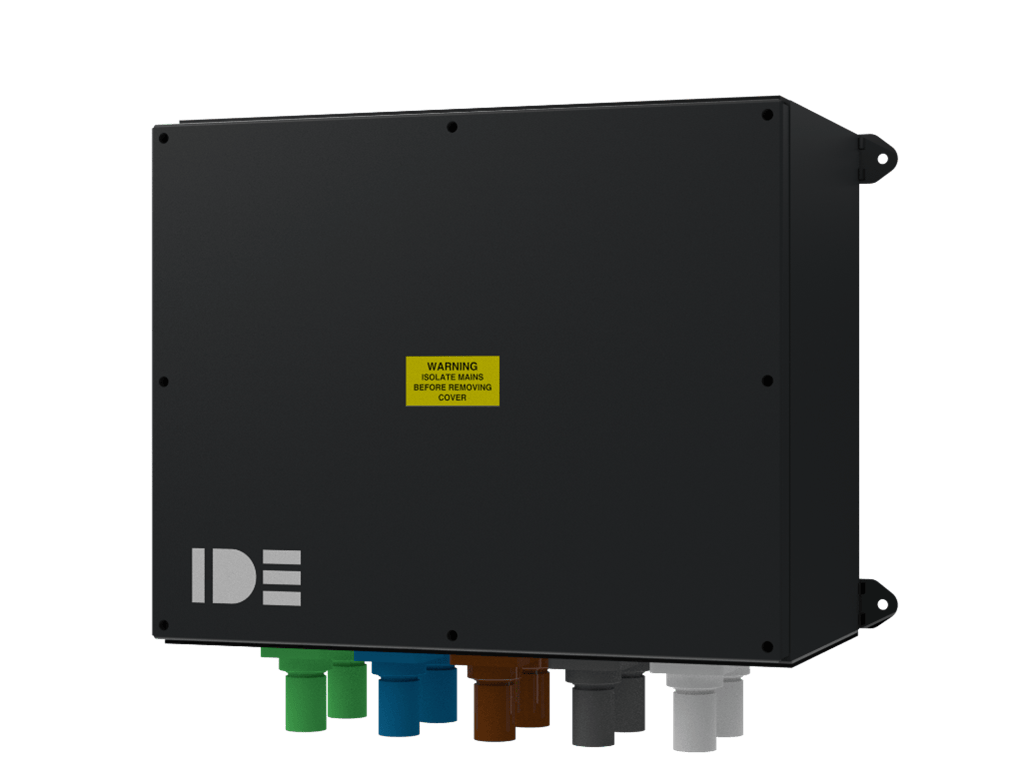

Our Load Bank Connection (LBC) can be fitted inside or outside of a building, allowing a safe and quick connection of a testing load bank to your back-up generator when it is undergoing testing/maintenance. Features and Benefits: Powerlock type (Source) connections for a quick easy connection, Powder coated Stainless Steel enclosure, Floor standing steel enclosure fitted with M10 fixing points and Slim Design.
Technical Information
Popular Applications
The LBC is used when the back-up generator is undergoing testing/maintenance. Regular load banking is strongly advised to ensure that your generator will perform when the need arises. Using a LBC reduces connection times and speeds up the load bank testing process. It can also remove the need for cables to run throughout the building to the back-up generator.
Inlet: Fully rated copper capable to suit 2 x M12 connections 3Phase Protection N/A Earth Leakage N/A IP Rating N/A
Outgoing: 2 x 500A 3P+N+E Powerlock type (Source) 3Phase Protection N/A Quantity N/A IP Rating 54
Size (mm): H400 x W538 X D265
Weight (kg): 24kg
