MD2000

Often used to support long-term projects, our high-power distribution boards are designed to supply temporary power to a wide range of applications.

Technical Information

Specification:
Input: 2000A 3P+N Terminals 2000A 4 Pole (50kA) ACB
Outgoing: 6 No. 400A 3P+N Copper Stubs
Outgoing: 6 No. 400A 4 Pole (50kA) MCCB's c/w programmable & switchable earth leakage. (All MCB’s have C-Type trip curves. All RCD’s and RCBO’s are Type A)
Dimensions: H 2100mm x W 2220mm x D 850mm
Weight: 1200kgs

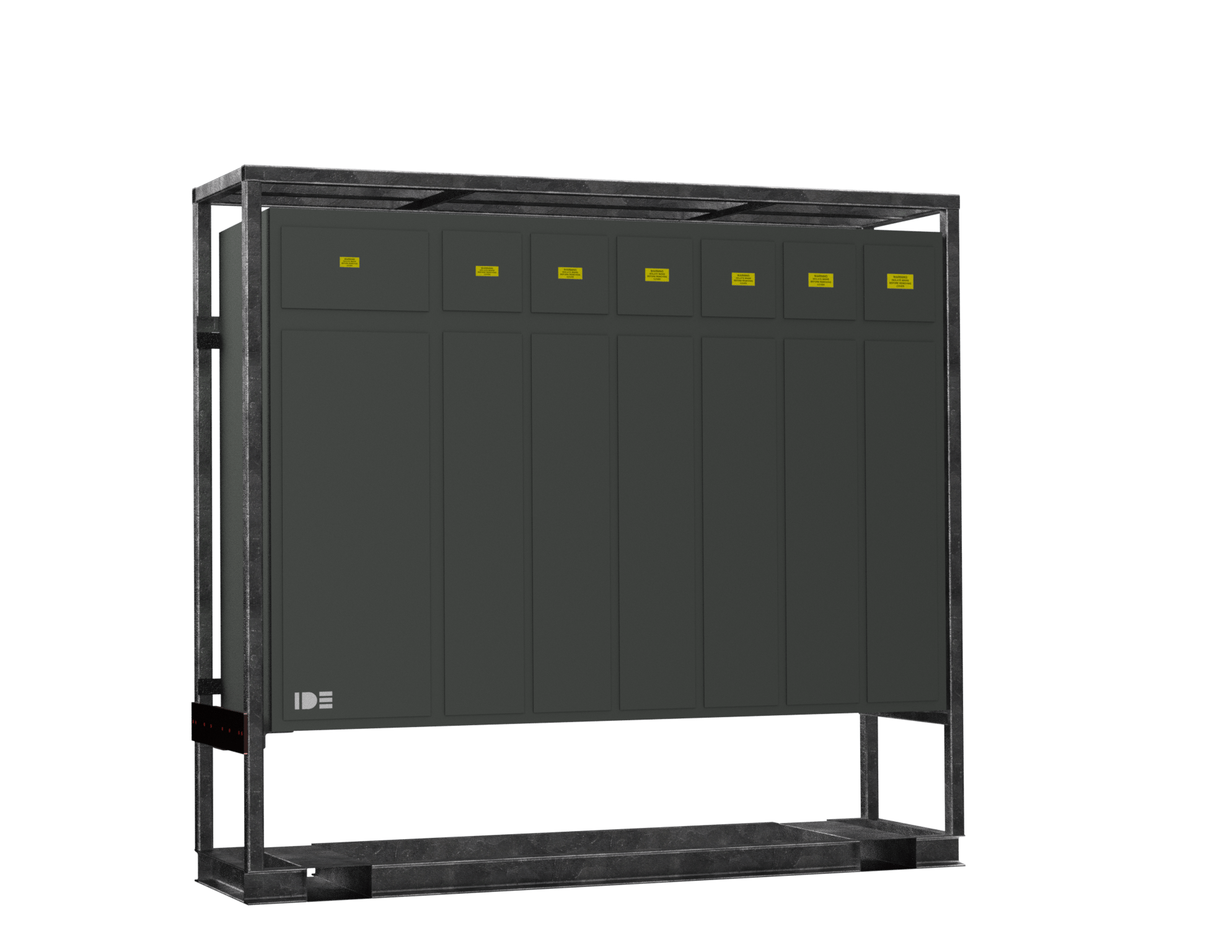

Equipment housed in a steel enclosure with rated common HDHC copper busbar system.

Entire panel is fixed within a load tested galvanised mild steel crash frame with crane lifting points and integral 200mm x 115mm fork lift pockets. . Internal and external copper earth bars complete with brass studs with panel clearance to allow lug on within each incoming and outgoing section. Each outgoing section is fitted with its own Multi-Function power monitor, earth leakage protection, and compartment anti-condensation heaters.

Enclosure
Manufactured from rigid Zintec steel with phosphate primed welds, texture powder coated. Front access doors manufactured from rigid Zintec steel, fitted with door locks and door stays (Lock out at 135°). Enclosure achieves IP65 rating. Other features include integral 2mm powder coated mild steel shrouds for additional safety, compliance with Form 4 Type 3 separation, and aluminium gland plates.
